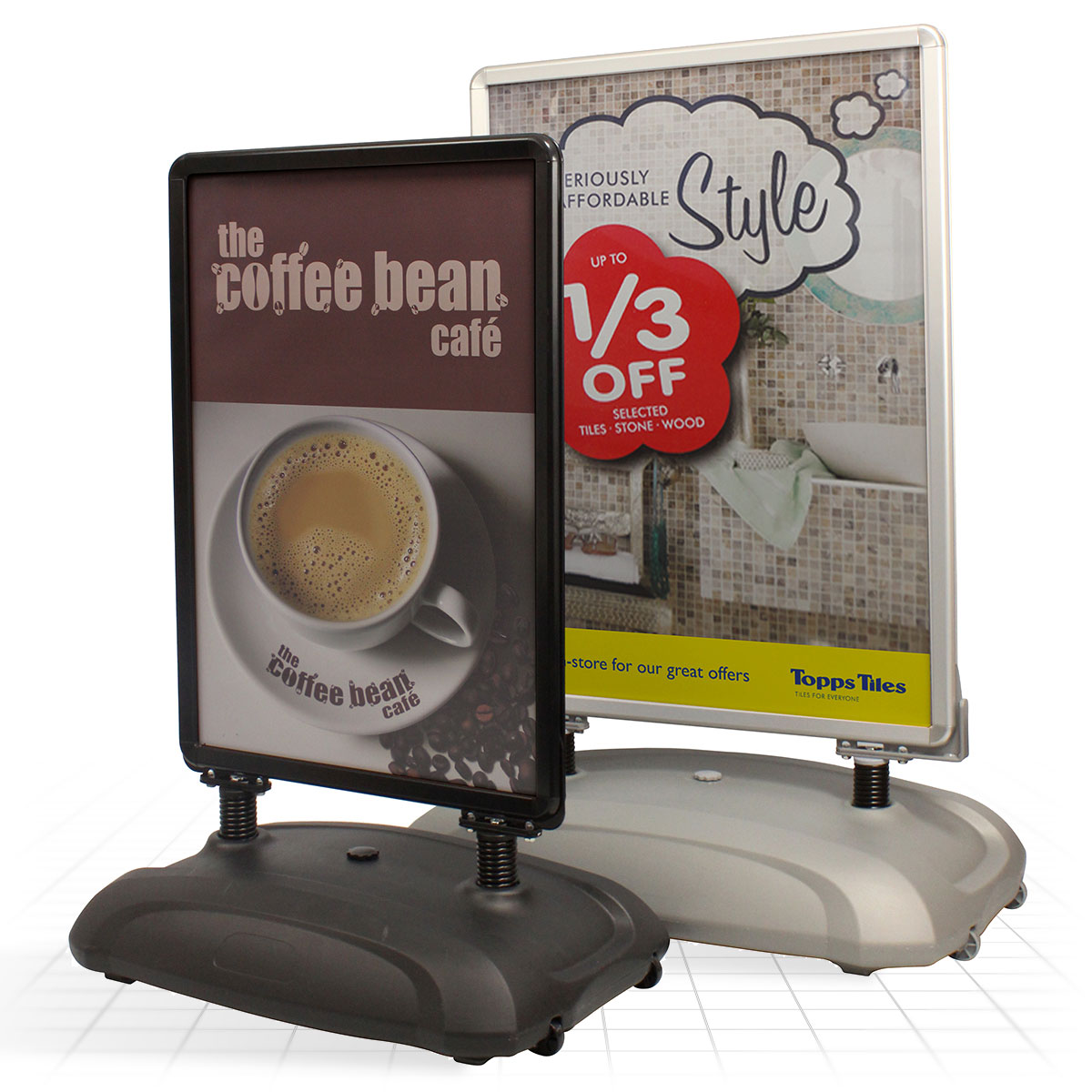

![Recoil Pavement Sign [Coffee Bean Cafe]](https://www.zoomdisplay.co.uk/content/uploads/2022/12/recoil_coffeeBean.jpg "Recoil Pavement Sign [Coffee Bean Cafe]")
![Recoil Pavement Sign [with Trolley]](https://www.zoomdisplay.co.uk/content/uploads/2022/12/recoil_withTrolley.jpg "Recoil Pavement Sign [with Trolley]")
![Recoil Pavement Sign [Optional Trolley]](https://www.zoomdisplay.co.uk/content/uploads/2022/12/recoil_trolley.jpg "Recoil Pavement Sign [Optional Trolley]")
The following downloads are available for this product…
| Title | File Type | File Size |
|---|---|---|
| Artwork Spec Sheet | 109kb | |
| Setup Guide | 221kb | |
| Setup Guide for Trolley | 189kb | |
| Template (30" x 40") | 13kb | |
| Template (A1) | 13kb | |
| Template (A0) | 13kb |
Recoil Pavement Sign
Recoil pavement outdoor displays
Key Features
- Easy front loading aluminium snap frames
- Double sided
- Suitable for indoor or outdoor use
- Heavy-duty construction
- Wheeled compact moulded base that can be filled with water or sand
- Complete with protective graphics covers
- Optional trolley available
- 1 Year Warranty
- Best Seller
- Fast Setup
- Quick Turnaround
Best-selling pavement signs
Our Recoil pavement sign is a popular double sided display for shop front display and forecourts. The snap frame enables quick and easy poster change. The Recoil outdoor display stand is completely waterproof with anti glare plastic covers for long term display.
Recoil can be supplied with optional printed posters.
The heavy base can be filled with water or sand for ballast. The base unit has built in wheels to help manoeuvre the unit into place. Also available is an optional trolley which is useful if the Recoil needs to be regularly moved to different areas.
Available in three sizes: A1, 30’x40’ and A0
Sizes
A1
| Width | Height | Depth | |
|---|---|---|---|
| Poster Size | 594mm | 841mm | – |
| Visible Display Area | 576mm | 821mm | – |
| Frame Size | 646mm | 893mm | – |
| Overall Dimensions | 800mm | 1193mm | 505mm |
| Base Dimensions | 800mm | 505mm | – |
| Weights |
Empty 18kg Full 37kg |
||
30” x 40”
| Width | Height | Depth | |
|---|---|---|---|
| Poster Size | 762mm | 1016mm | – |
| Visible Display Area | 744mm | 997mm | – |
| Frame Size | 814mm | 1068mm | – |
| Overall Dimensions | 960mm | 1386mm | 610mm |
| Base Dimensions | 960mm | 610mm | – |
| Weights |
Empty 23kg Full 76kg |
||
A0
| Width | Height | Depth | |
|---|---|---|---|
| Poster Size | 841mm | 1189mm | – |
| Visible Display Area | 823mm | 1173mm | – |
| Frame Size | 893mm | 1240mm | – |
| Overall Dimensions | 960mm | 1559mm | 610mm |
| Base Dimensions | 960mm | 610mm | – |
| Weights |
Empty 25kg Full 77kg |
||
